Reed Instruments

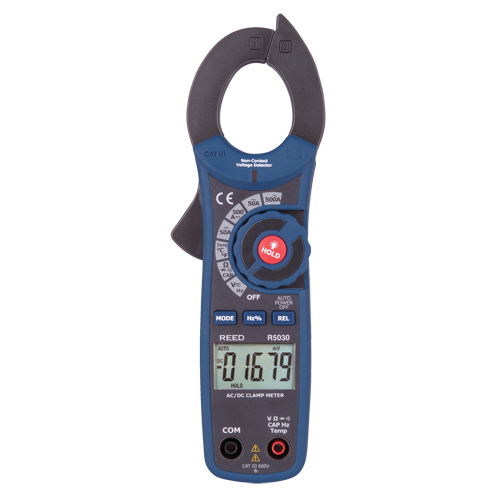

True RMS AC/DC Clamp Meter with ISO Certificate, AC/DC Voltage, AC/DC Current

Model: NJW167

Mfr. No.: R5030-NIST

  • True RMS AC/DC Clamp Meter with ISO Certificate, AC/DC Voltage, AC/DC Current Action Paper

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$294.00 / Each

Voltage Readings

AC/DC

Current Readings

AC/DC

AC/DC Current Range

50.00, 500.0 A

Accuracy

AC: ±(2.8% rdg. +30 dgt.);DC: ±(2.5% rdg. +30 dgt.), ±(1.0% rdg. +30 dgt.), ±(0.1% rdg. +4 dgt.), ±(1.0% rdg. +4 dgt.), ±(0.5% rdg. +10 dgt.), ±(3.5% rdg. +10 dgt.)

AC Voltage Range

500.00 mV, 5.0000, 50.000, 500.00, 750.0 V

DC Voltage Range

500.00 mV, 5.0000, 50.000, 500.00, 1000.0 V

Resistance Range

500.00 O, 5.000, 50.000, 500.00 kO, 5.0000, 50.000 MO

Frequency Range

10.000 kHz

Capacitance Range

500.00, 5000.0 nF, 50.00, 500.0 μF, 5.000 mF

Temperature Range

-100.0 to 1000.0 °C/-148.0 to 1832.0 °F

  • Measures AC/DC current, AC/DC voltage, resistance, capacitance, frequency, duty cycle, and temperature with a type K thermocouple probe
  • True RMS AC measurements
  • Non-contact AC voltage detector in clamp tip
  • Low battery indication and auto power-off
  • 50,000 count LCD with backlight
  • Conforms to EN61010 Cat. III 600 V
  • Jaw Opening: 1.2" (30 mm)
  • Includes set of test leads, temperature probe, batteries, and soft carrying case
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
