Reed Instruments

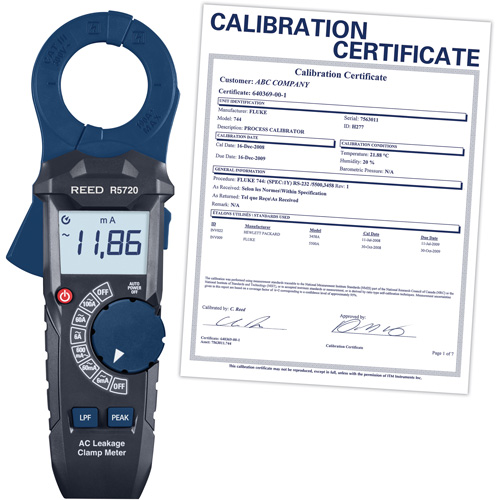

AC Leakage Clamp Meter with Calibration Certificate

Model: ID574

Mfr. No.: R5720-NIST

  • AC Leakage Clamp Meter with Calibration Certificate Action Paper

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$404.00 / Each

Display Type

Digital

Max. Load Current

100 A

Accuracy (50/60Hz)

100.0 A; 60.00 A: ±(1.5% rdg. +8 dgt.), 6.000 A; 600.0 mA; 60.00 mA: ±(1.0% rdg. +5 dgt.), 6.000 mA: ±(1.0% rdg. +8 dgt.)

Operating Temperature

41 to 104°F (5 to 40°C)

Country Of Origin

China


  • This AC Leakage Clamp Meter is a professional-grade tool designed for precise AC current measurements, supporting ranges from 6 microamps to 100 amps
  • The R5720 offers high accuracy, low resolution and a low pass filter for measuring variable frequency equipment
  • 6000 count backlit LCD display
  • 1.26" (32mm) jaw size opening
  • True RMS AC measurements
  • Built-in LED flashlight
  • Low battery and over range indicators
  • Cat. III 300V
  • Items with calibration certificates are non-returnable and non-refundable due to the limited validity of the certification
