CK Worldwide Inc

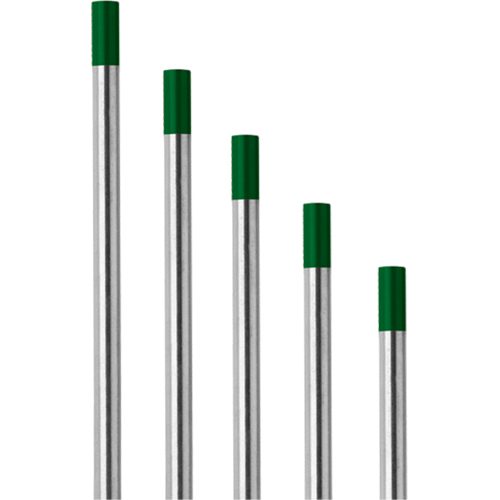

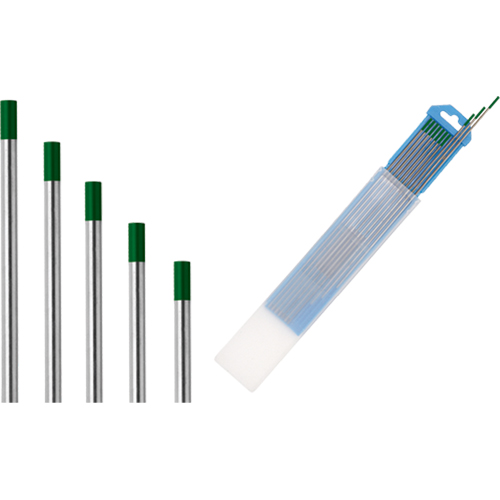

Tungsten Electrodes, 5/32" Dia. x 7" L

Model: 714-1060

Mfr. No.: T5327G

  • Tungsten Electrodes, 5/32" Dia. x 7" L Action Paper

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$278.07 / Pack of 10

Diameter

5/32"

Length

7"

ISO Colour Chart

Green AWS A5.12 EWP ISO 6848 WP

Sold/Priced Per

Pack

Qté/paquet

10

Type

Pure

Colour

Green

Country Of Origin

China

  • TIG welding electrodes usually contain small quantities of metallic oxides which can offer the following benefits: - Facilitate arc starting - Increase arc stability - Improve current carrying capacity of the electrode - Reduce the risk of weld contamination - Increase electrode life
  • Oxides used are primarily zirconium, thorium, lanthanum or cerium
  • Additions are 1% - 4%, improve arc initiation, especially when direct current (DC) welding is employed
  • Thorium oxide (thoria), effective in terms of long life and thermal efficiency
  • Zirconium oxide (zirconia) has been commonly used for alternating (AC) TIG welding, welding aluminum
  • Electrode length: 7"
  • Each package contains 10 electrodes; Pure:
  • Lowest current capacity and least expensive
  • Maintains a clean balled end for welding on AC
  • More prone to weld contamination than other types of tungsten electrodes
  • Tends to spit at higher currents
  • Used for non-critical welds only
